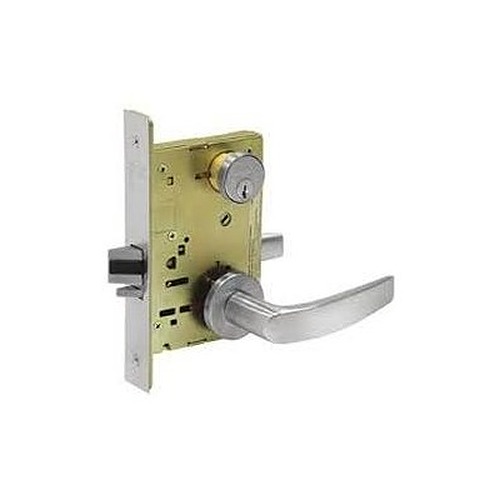

Sargent 8204LN

Storeroom Function Complete Mortise Lock with Lever and Rose

Quick Product Details

  • Complete Mortise Lock
  • Storeroom Function
Price: $658.00 /each

SKU: 8204LN

Choose Options Below

The Sargent 8204LN is a complete mortise lock which includes everything necessary for a new or replacement installation. Operates with storeroom function and provides maximum level of security and utmost efficiency. Sargent mortise locks are designed with very high standards in quality and durability.

  • Stock Item
  • Order in the next 9 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $658.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

B lever with LN Rose B lever with LN Rose
L lever with LN Rose L lever with LN Rose
P Lever with LN Rose P Lever with LN Rose

Help Me Decide

  • Lever with LN style rose. Rose has a 2" diameter

Choose Finish:

US3 (Polished Brass) + $15.00 US3 (Polished Brass) +$15.00
US10B (Oil Rubbed Bronze) + $15.00 US10B (Oil Rubbed Bronze) +$15.00
US26 (Polished Chrome) + $15.00 US26 (Polished Chrome) +$15.00
US26D (Satin Chrome) US26D (Satin Chrome)

Choose Cylinder:

Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
No Cylinder Needed (LC) Subtract -($39.60)
60-Prepped for Removable Core, core not included

Help Me Decide

Standard 1-1/8” mortise cylinder with LA keyway, keyed different

Standard Sargent mortise cylinder

60-Prepped for Sargent full size removable core (core not included)

  • Easily rekeyed without disassembling entire lock
  • Interchangeable with Sargent mortise locks, exit devices, cylindrical locks , padlocks and auxiliary locks

LC (less cylinder)

Cylinder not included



Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • 10 year limited warranty
  • Auxiliary Deadlatch

  • Simple operation- only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

  • Lever: info icon

    • B lever with LN Rose
    • L lever with LN Rose
    • P Lever with LN Rose
  • Finish:

  • Cylinder: info icon

    • Standard 1-1/8" Mortise Cylinder with LA Keyway Keyed Different
    • No Cylinder Needed (LC)
    • 60-Prepped for Removable Core, core not included

Product at A Glance

Style Mortise Lock
Function Storeroom or Closet Function:
- Outside lever is always locked
- Requires a key for entry
- Inside lever is always free
- ANSI F07
Design - Rose - LN style with 2" diameter
- Lever - select above
Handing Handed - field reversible, shipped RH standard
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch - 3/4" projection
- Stainless steel
- One piece
- Anti-friction
- Reversible
Door Thickness 1-3/4"
Stile 4-1/2" minimum
Backset 2-3/4" (Standard)
Outside Front Plate 8" X 1-1/4"
Body 4-3/32" deep X 5-31/32" high

More Info

Sargent mortise locks are designed to last a lifetime. Their unparalleled quality and unyielding strength and durability have been confirmed, time and again, by the absolute satisfaction of our many customers and by  the vigorous ANSI cycle testing in which they exceeded the standards by fourteen times. Go for it and you won’t regret it!



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product


SARGENT 8200 Mortise Installation thumbnail

SARGENT 8200 Mortise Installation
