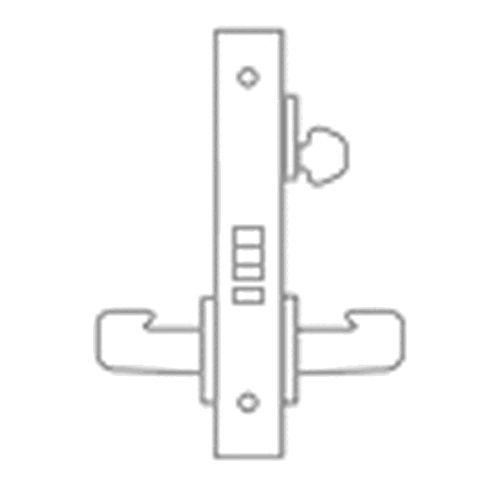

Sargent 8270

Electrical Fail Safe Mortise Lock Body

Quick Product Details

  • Mortise Lock Body
  • Electromechanical Fail Safe Function
Price: $490.00 /each

SKU: 8270

Choose Options Below

This Sargent 8270 electromechanical fail safe function is a solenoid activated mortise lock body. A key in the outside lever will retract the latchbolt unless the outside lever is locked by the solenoid. Inside lever is always free. Includes fail safe security feature will will ensure that the door remains unlocked in the event of a loss of power.

  • Stock Item
  • FREE Shipping
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $490.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Polished Brass (US3) Polished Brass (US3)
Oil Rubbed Bronze (US10B) Oil Rubbed Bronze (US10B)
Satin Chrome (US26D) Satin Chrome (US26D)

Choose Voltage:



Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • 10 year limited warranty
  • Auxiliary deadlatch
  • Fail Safe

  • Simple operation- only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

Product at A Glance

  • Includes outside front, strike and mounting screws
  • Does not include cylinders, levers or roses
  • Fail safe-In the case of a power loss the door remains unlocked
Style Solenoid activated mortise lock body
Function - Electromechanical Fail Safe Function:
- Key outside retracts the latch bolt, unless the outside lever is locked
- Outside lever can only be locked by the solenoid
-Inside lever is always free
- Fail Safe security feature
Door Thickness 1-3/4"
Backset 2-3/4" (Standard)
Current .25A at 12VDC or .5A at 24VDC
Operating Temperature - Minimum: 151 degrees
- Maximum: 31 degrees



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product



SARGENT Mortise Lock Handing Change thumbnail

SARGENT Mortise Lock Handing Change
