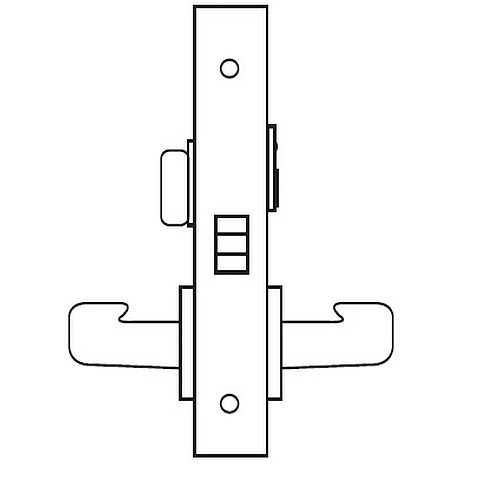

Sargent BP-8265

Privacy Bedroom or Bath Mortise Lock Body

Quick Product Details

  • Mortise Lock Body
  • Privacy Function
Price: $322.00 /each

SKU: BP-8265

Choose Options Below

This Sargent 8265 mortise lock body is designed for privacy, bedroom or bath applications in commercial heavy duty areas. Outside lever will retract the latchbolt unless it is locked by the thumbturn on the inside. Inside lever will retract the latchbolt and unlock the outside lever. Thumbturn will lock/unlock the outside lever and closing the door will unlock the outside lever as well.

  • Stock Item
  • Order in the next 3 hours 21 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $322.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Polished Brass (US3) Polished Brass (US3)
Oil Rubbed Bronze (US10B) Oil Rubbed Bronze (US10B)
Satin Chrome (US26D) Satin Chrome (US26D)

Overview


Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • 10 year limited warranty

Convenience:
  • Simple operation- only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

Product at A Glance

  • Includes outside front, strike and mounting screws
  • Does not include levers or roses
Style Mortise lock body
Function Privacy Function:
- Outside lever retracts the latch bolt, unless it is locked by thumbturn on the inside
- Inside lever retracts the latch bolt and unlocks the outside lever
- Thumbturn locks and unlocks the outside lever
- Closing the door will unlock the outside lever
- Emergency release unlocks the outside lever
- ANSI F22
Handing Handed-field reversible, shipped as RH
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch 3/4" projection, stainless steel, one piece, anti-friction, reversible
Door Thickness 1-3/4"
Stile - 4-1/2" (minimum)
- 4-3/4" (minimum) for electrical function locks
Backset 2-3/4" (Standard)
Outside Front Plate 8" X 1-1/4" Adjustable to any angle from flat to beveled 1/8" in 2" (ANSI A115.1)
Body 4-3/32" deep X 5-31/32" high
