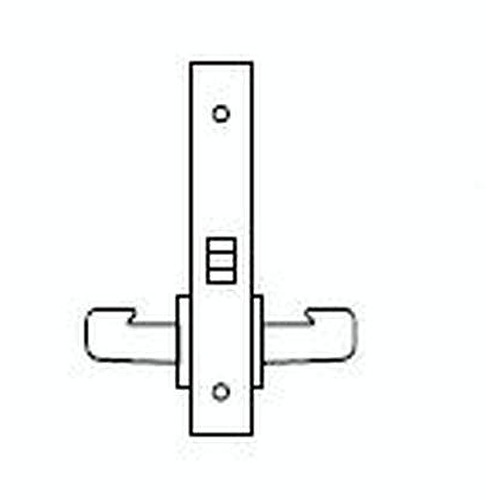

Sargent BP-8215

Passage or Closet Mortise Lock Body

Quick Product Details

  • Mortise Lock Body
  • Passage Function
Price: $287.00 /each

SKU: BP-8215

Choose Options Below

This Sargent 8215 is a passage function mortise lock body where the inside and outside levers are always free for entry or exit. Lock body measures 4-3/32" in depth and 5-31/32" in height. Fits on doors with a standard backset of 2-3/4" and standard thickness of 1-3/4". Door stile must be at least 4-1/2" for a regular lock and a minimum of 4-3/4" for electrical function locks.

  • Stock Item
  • Order in the next 32 hours 37 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $287.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Polished Brass (US3) Polished Brass (US3)
Oil Rubbed Bronze (US10B) Oil Rubbed Bronze (US10B)
Satin Chrome (US26D) Satin Chrome (US26D)


Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • 10 year limited warranty

  • Simple operation - only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

Product at A Glance

  • Includes outside front, strike and mounting screws
  • Does not include levers or roses
Style Mortise lock
Function Passage Function:
- Outside and inside levers are always free
- ANSI F01
Handing Handed-field reversible, shipped as RH
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch 3/4" projection, stainless steel, one piece, anti-friction, reversible
Door Thickness 1-3/4"
Stile - 4-1/2" (minimum)
- 4-3/4" (minimum) for electrical function locks
Backset 2-3/4" (Standard)
Outside Front Plate 8" X 1-1/4" Adjustable to any angle from flat to beveled 1/8" in 2" (ANSI A115.1)
Body Dimensions 4-3/32" deep X 5-31/32" high

More Info

Sargent locks are engineered to provide superior quality and durability that by far exceeds standards for mortise locks in today’s market. The package for this 8215 mortise lock includes an outside front, a strike and mounting screws. A lever and rose trim set  is not included and needs to be ordered separately.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product


SARGENT 8200 Mortise Installation thumbnail

SARGENT 8200 Mortise Installation

SARGENT Mortise Lock Handing Change thumbnail

SARGENT Mortise Lock Handing Change
