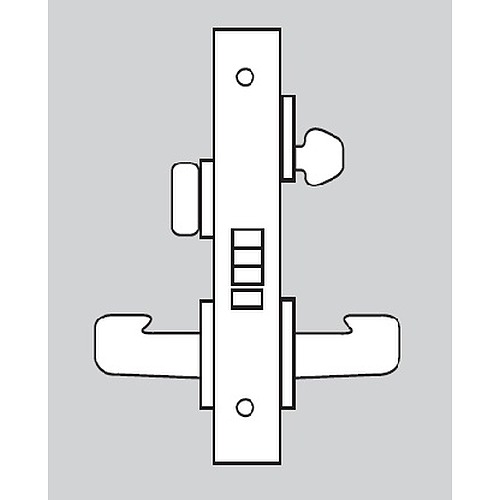

Sargent BP-8205

Office or Entry Mortise Lock Body

Quick Product Details

  • Mortise Lock Body
  • Entrance/Office Function
Price: $343.00 /each

SKU: BP-8205

Choose Options Below

This Sargent 8205 Entrance/Office function heavy duty mortise lock body includes an outside front, strike and mounting screws. Package does not include cylinders, levers or roses. This lock body requires a 1-1/8" mortise cylinder which is not included in the package. This product is handed and field reversible, and is generally shipped as right handed.

  • Stock Item
  • Order in the next 31 hours 53 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $343.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Polished Brass (US3) Polished Brass (US3)
Oil Rubbed Bronze (US10B) Oil Rubbed Bronze (US10B)
Satin Chrome (US26D) Satin Chrome (US26D)


Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • 10 year limited warranty
  • Auxiliary Deadlatch

  • Simple operation - only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

Product at A Glance

  • Includes outside front, strike and mounting screws
  • Does not include cylinders, levers or roses
  • Requires 1-1/8” mortise cylinder (not included)
Style Mortise lock
Function Entrance or Office Function:
- Key outside retracts latchbolt, also locks & unlocks outside lever.
- Lever inside retracts latchbolt only, outside lever remains locked
- Lever outside is locked/unlocked by thumbturn inside or by key outside.
Handing Handed - field reversible, shipped as RH
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch 3/4" projection, stainless steel, one piece, anti-friction, reversible
Door Thickness 1-3/4"
Stile - 4-1/2" (minimum)
- 4-3/4" (minimum) for electrical function locks
Backset 2-3/4" (Standard)
Outside Front Plate 8" X 1-1/4" Adjustable to any angle from flat to beveled 1/8" in 2" (ANSI A115.1)
Body 4-3/32" deep X 5-31/32" high

More Info

When it comes to quality and durability, Sargent far surpasses the accepted standards in today’s lock market. This 8200 series mortise lock exceeds the standard cycle testing standards of ANSI 156.13 Grade 1 by fourteen times. This particular lock is for entrance or office function where a key in the outside lever will retract the latch and a button on the inside lever locks the outside lever.



Instructions & Templates

Click on the links below to download helpful instructions & templates for this product



SARGENT 8200 Mortise Installation thumbnail

SARGENT 8200 Mortise Installation

SARGENT Mortise Lock Handing Change thumbnail

SARGENT Mortise Lock Handing Change
