SDC Z7652--QR

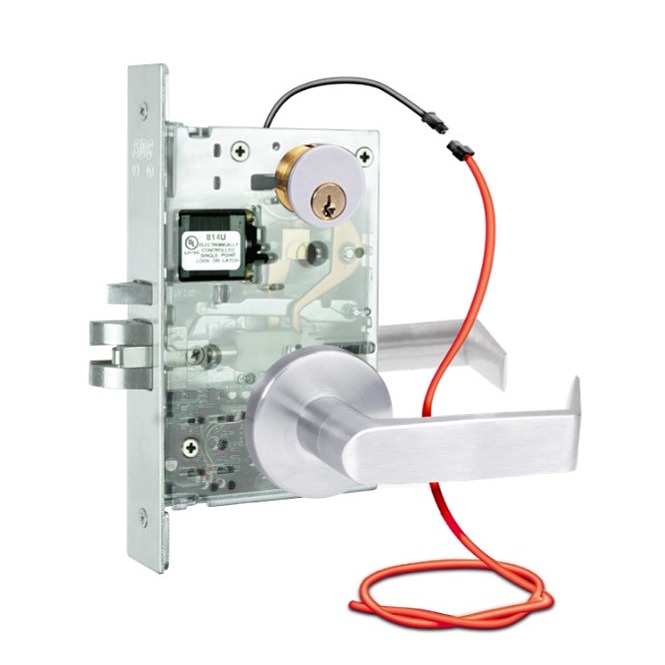

Electrical Fail Secure Mortise Lock Body

Quick Product Details

  • Mortise Lock Body
  • Electromechanical Fail Secure Function
  • Includes RX (Request to Exit) switch built in
Price: $625.00 /each

SKU: Z7652--QR

Choose Options Below

This SDC Z7652 is an electromechanical fail secure function mortise lock body that is designed to keep a door locked in case of power loss. As part of the SDC Z7600 lock series, it is a strong and durable lock, perfect for heavy duty applications in commercial areas such as hospitals, schools and universities.

  • Stock Item
  • Order in the next 14 hours 13 minutes to ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $625.00

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

US26D Satin Chrome US26D Satin Chrome

Choose Voltage:

24VDC

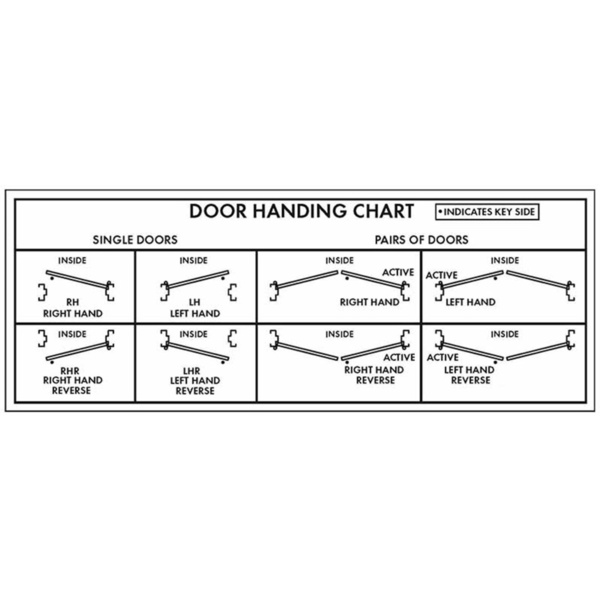

Choose Handing:

LH Left hand LH Left hand
RH Right Hand RH Right Hand
RHR Right Hand Reverse RHR Right Hand Reverse
LHR Left Hand Reverse LHR Left Hand Reverse

Overview


Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • 5 year limited warranty
  • Auxiliary deadlatch
  • Fail secure
  • RX (request to exit) Switch built in

Available Options: Choose Options Above

  • Finish:

  • Voltage:

    • 24VDC
  • Handing:

    • LH Left hand
    • RH Right Hand
    • RHR Right Hand Reverse
    • LHR Left Hand Reverse

Product at A Glance

  • Includes outside front, strike and mounting screws
  • Does not include cylinders, levers or roses
  • Uses Schlage L9000 Lever Trim
  • Requires 1-1/8” mortise cylinder (not included)
  • Fail Secure-In the case of a loss of power the door remains locked.
Style Motor activated mortise lock
Function Electromechanical Fail Secure Function:
- Key outside retracts the latch bolt
- Outside lever can only be locked by the solenoid
- Inside lever is always free
- Fail Secure security feature
Door Thickness 1-3/4"
Backset 2-3/4" (Standard)
Current 0.62A at 24VDC Inrush, 0.16A Continuous

More Info

Motorized electric latch retraction (MLR) mortise locksets replace existing mechanical or electrified mortise locksets  for the access control of openings in commercial, industrial and institutional facilities where code compliance, dependable operation and resistance to physical abuse are required. These code compliant electric mortise locksets stay latched even when unlocked, maintaining fire door integrity. SDC’s 7600 series motorized latch retraction controlled mortise locksets incorporate a grade 1 heavy duty mortise lockset and vandal resistant clutch – proprietary to all SDC locksets. The motorized latch retraction feature is designed for use on fire rated doors to provide access control and building and fire life safety compliance. Door stays latched even when de-energized. Ideal for automatic door operator applications. All SDC mortise locks feature a mortise cylinder to manually retract the latch.*

* Key cylinders sold separately, see related products
