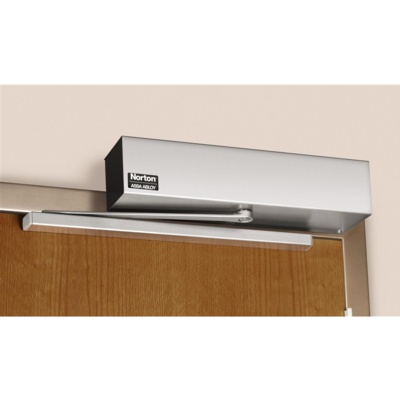

Norton 5610-PC

Powermatic Low Energy Door Operator with Power Cord

Quick Product Details

  • Powermatic Low Energy Door Operator
  • With Power Cord
  • For interior doors
  • This product has been discontinued and is available in limited quantities only. Please call us for more information.
Price: $1,430.00 /each

SKU: 5610-PC

Choose Options Below

This Norton 5610-PC is an electromechanical low energy door operator with power cord. The power cord will eliminate the use of a hard wiring operator. Just plug the cord into an electrical outlet. This operator is ideal for ADA compliant doors in classrooms, dormitories and offices, and for any doors in a touch-free environment.

  • Stock Item
  • Order in the next 5 hours 47 minutes to ship TODAY
  • FREE Same-Day ShippingWhen ordered before 2PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $1,430.00

Choose Finish:

AL-689 Aluminum Painted AL-689 Aluminum Painted

Overview


Suited For:
  • Interior doors with low to medium traffic

Quality and Safety:​
  • Meets requirements for Americans with Disabilities Act (ADA).
  • 1 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • The power cord, eliminates use of a hard wiring operator. Just plug into an electrical outlet.
  • Power cords cannot be added to operators in the field
  • Maximum distance from operator to receptacle is 15"
  • Electrically controlled backcheck, sweep-speed and latch-speed
  • On/Off Switch.
  • Onboard 24VDC (1.1A) power supply for accessories
  • Electromechanical low energy operators feature a motor and gearbox for consistent automatic operation.
  • Electromechanical units are used in applications where automatic mode (activated by wall switches, motion sensors, etc.) is the primary function.
  • Hold open options: 0-30 seconds (5 seconds minimum required for ADA and ANSI/BHMA A156.19).
  • Door closer mode allows for manual usage.
  • Electronic motor dampening - provides feel of normal, manual door closer.
  • Functions as Push & Go - As the door is manually opened, the operator "senses" movement and opens door to the full open position.
  • Obstruction Detection - Motor stops if door is obstructed during opening.
  • Motor Start Delay - 0-5 second delay to allowing locking hardware to release first.
  • Relay Output: SPDT
    • Normally Open/Normally Closed (jumper)
    • For electric strike function.
Style Powermatic Low Energy Door Operator with power cord
Mounting Pull Side
Door Handing Non-handed
Door Weight Maximum 150 lbs.
Door Width -Minimum 32"
- Maximum 36"
Door Swing 95 degrees (trim permitting)
Power Input 120VAC, 60Hz.
Current Draw .6A

More Info


Looking to make restroom areas, laboratories or examination rooms completely touch-free in order  to create a germ-free environment? Complete the picture with Norton’s low energy operator which can be used together with a hands-free, wave-to-open switch to cleanly operate the door. When set to the door closer mode the operator will function manually.
