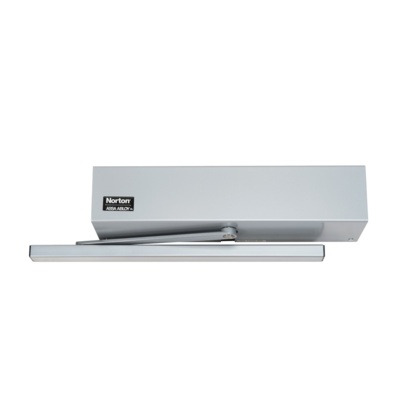

Norton 5610

Powermatic Low Energy Pull Side Door Operator for Interior Doors

Quick Product Details

  • Powermatic Low Energy Door Operator
  • For Interior Doors
SKU: 5610

Price: $954.00 /each

Choose Options Below

This Norton 5610 Electromechanical low energy door operator is ADA compliant and is ideal for use in touch-free applications. Standard supplied with a track assembly. The pull-side mounted unit can be operated manually or activated by wall switches, or radio frequency devices.

  • In Stock!
  • Order in the next 36 hours 23 minutes to Ship TOMORROW
  • FREE Same-Day ShippingWhen ordered before 3PM ET
  • No Hassle Returns
  • ×
    Getting shipping methods...

Have a question about this product?

Price: $954.00

Choose Options

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Finish:

Overview


Suited For:
  • Interior doors with low to medium traffic

Quality and Safety:
  • Meets requirements for Americans with Disabilities Act (ADA).
  • 1 year limited warranty

Available Options: Choose Options Above

Product at A Glance

  • Primarily used on non-fire rated, low to medium interior traffic doors such as offices and restrooms.
  • Electrically controlled backcheck, sweep-speed and latch-speed
  • Door can be used as a manual door (Door Closer Mode). The door will work and act like a standard door closer with power when pushed or pulled open manually.
  • On/Off Switch
  • Onboard 24VDC (1.1A) power supply for accessories
  • Electromechanical low energy operators feature a motor and gearbox for consistent automatic operation.
  • Electromechanical units are used in applications where automatic mode (activated by wall switches, motion sensors, etc) is the primary function.
  • Activation options: wall switches or radio frequency devices
  • Hold open options: 0-30 seconds (5 seconds minimum required for ADA and ANSI/BHMA A156.19)
  • Electronic motor dampening provides feel of normal, manual door closer
  • Functions as Push & Go - As the door is manually opened, the operator "senses" movement and opens door to the full-open position.
  • Obstruction Detection - Motor stops if door is obstructed during opening.
  • Motor Start Delay - 0-5 second delay to allow locking hardware to release first.
  • Relay Output: SPDT
    • Normally Open/Normally Closed (jumper)
    • For electric strike function
Style Powermatic Low Energy Door Operator
Mounting Pull Side
Door Handing Non-handed
Door Weight Maximum 150 lbs.
Door Width - Minimum 32"
- Maximum 36"
Power Input 120VAC, 60Hz.
Current Draw .6A

Norton Powermatic low energy door operators are designed for use in touch-free or retrofit  applications to meet ADA requirements. This operator has many useful features to make its operation as smooth and reliable as possible. It is primarily intended for applications where automatic mode, using wall switch or radio frequency to activate it, is the main function.

Reviews

Q&A

Instructions & Templates

Click on the links below to download helpful instructions & templates for this product

Powermatic Low Energy Pull Side Door Operator for Interior Doors

Norton 5600 Operator Installation Video thumbnail

Norton 5600 Operator Installation Video
