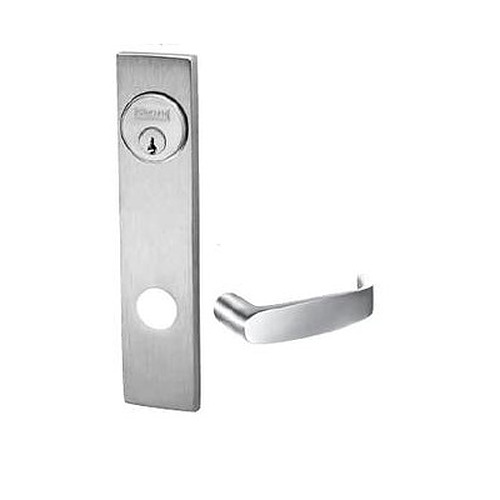

Sargent 8204LWI-LF

Special Order Storeroom Function Complete Mortise Lock with Lever and Decorative Plate

Call for Pricing 1-866-749-7661
Special Order non-stock item Requires 4 week lead time

SKU: 8204LWI-LF

Choose Options Below

The Sargent 8204LW1 is a storeroom function complete mortise lockset that includes a lever with the design you select below and a LW1 decorative plate. This lock is ideally suited for office buildings, government facilities, hospitals, schools and universities. Greatly exceeds ANSI/BHMA Grade 1 cycle testing requirements. With mortise cylinder and LF keyway.

Because this is not a stock item we must order it specifically for you and we will be unable to accept a return unless the item is defective as determined by the factory it was bought from.

  • Special Order
  • FREE Shipping

Have a question about this product?

Call for Pricing 1-866-749-7661

Start selecting options

Use the menu on the right to select available options.
After all options have been chosen, you can add to cart.

Choose Lever:

B lever with LW1 Decorative Plate B lever with LW1 Decorative Plate
L lever with LW1 Decorative Plate L lever with LW1 Decorative Plate
P lever with LW1 Decorative Plate P lever with LW1 Decorative Plate

Help Me Decide

  • Lever with LW1 decorative plate.
  • Plate is 8" H x 2" W

Choose Finish:

US3 (Polished Brass) + $15.00 US3 (Polished Brass) +$15.00
US10B (Oil Rubbed Bronze) + $15.00 US10B (Oil Rubbed Bronze) +$15.00
US26 (Polished Chrome) + $15.00 US26 (Polished Chrome) +$15.00
US26D (Satin Chrome) US26D (Satin Chrome)

Choose Handing:

left HAND SHOWN Left Hand (LH)
RIGHT HAND SHOWN Right Hand (RH)

Help Me Decide



Face the outside of the door to determine the hand. Here are some rules to follow:

  • The outside of an exterior door is the street or entrance side.
  • The outside of a room door is the hall side.
  • The outside of a single communicating door is the side from which the hinges are not visible when the door is closed.
  • The outside of a closet door is the room or hall side.



The door is Left Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your left side.

The door is Right Handed if:

   • While you are standing outside of the room facing the door, the hinges are on your right side.

Overview

Special order non stock item with 4 week lead time.
Suited for:
  • Commercial heavy duty applications

Quality and Safety:
  • Exceeds the ANSI/BHMA Grade 1 standards for cycle testing requirements by 14 times.
  • ANSI/BHMA 156.13 series 1000 Operational Grade 1 and Security Grade 1 certified with all standard trims.
  • UL and UL listed to Canadian safety regulations; listed for use on 3-hour doors
  • Positive Pressure - meets UL 10C and UBC 7-2
  • Complies with ADA requirements
  • 10 year limited warranty
  • Auxiliary Deadlatch

Convenience:
  • Simple operation - only 30 degrees of lever rotation necessary to retract latch
  • Installation time greatly reduced due to pre-assembled components
  • Can be easily re-handed without disassembling components or removing case

Available Options: Choose Options Above

  • Lever: info icon

    • B lever with LW1 Decorative Plate
    • L lever with LW1 Decorative Plate
    • P lever with LW1 Decorative Plate
  • Finish:

  • Handing: info icon

    • Left Hand (LH)
    • Right Hand (RH)

Product at A Glance

  • There are two exposed screws on the inside decorative plate
Style Mortise Lock
Function Storeroom or Closet Function:
- Always locked on outside lever
- Requires a key for entry
- Inside lever is always free
- ANSI F07
Design - Escutcheon - LW1 style - 8" x 2"
- Lever - select above
Handing Handed-field reversible
Strike 4-7/8" curved-lip strike with a (standard) curved lip of 1-1/4" - non-handed (ANSI A-115.1)
Latch - 3/4" projection
- stainless steel
- one piece
- anti-friction
- reversible
Door Thickness 1-3/4"
Stile 4-1/2" minimum
Backset 2-3/4" standard
Outside Front plate 8" X 1-1/4"
Decorative Plate 8" high X 2" wide
Body 4-3/32" deep X 5-31/32" high
Cylinder Mortise cylinder with LF kewyway
